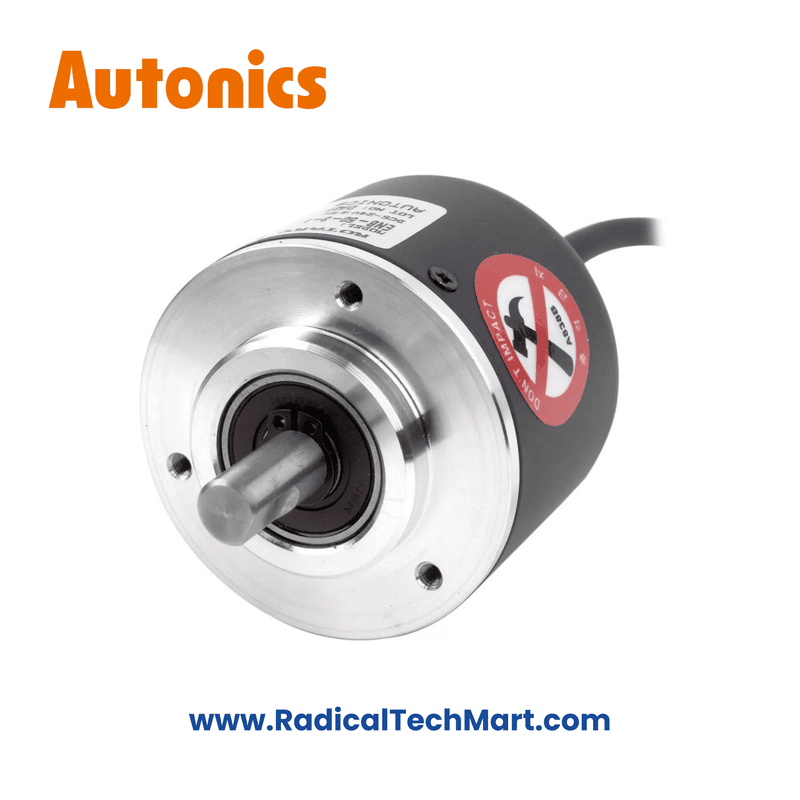

E50S8-3600-3-T-1 Autonics Rotary Encoder
Non-returnable
₹7,773.00
Product Details
| Product | Description |
|---|---|
| Brand | Autonics |
| Model No. | E50S8-3600-3-T-1 |
| Encoder Type | E50S Series shaft type of Incremental Rotary Encoder |
| Usage/Application | Industrial |
| Warranty | 12 Months |
| Diameter | 50mm,Shaft type |
| Shaft Diameter | 8mm |
| Output Phase | A, B, Z |
| Output | Totem Pole Output |
| Power Supply | 5-24 VDC |
| Vibration | 1.5mm Amplitude or 300m/s 2 at Frequency of 10 to 55Hz(for 1 min.) in each of X, Y, Z Directions for 2 Hours |
| Shock | Approx. Max. 75G |
| Ambient Temperature | -10 to 70°C, storage : -25 to 85°C |
| Ambient Humidity | 35 to 85%RH, Storage : 35 to 90%RH |
| Protection | Cable type, Connector cable type: IP50(IEC standard), Connector type: IP65(IEC standard) |
| Pulse/Resolution(P/R) | 360 |
| Max. Response Frequency | 300kHz |
| Insulation Resistance | Min. 100MΩ |
| Dielectric Strength | 750VAC 50/60Hz for 1 Minute |
| Connection | 250mm Connector cable type |
| Shaft loading | Radial : 10kgf Thrust : 2.5kgf |
| Unit Weight | Approx. 275g, Connector Type : 180g |
